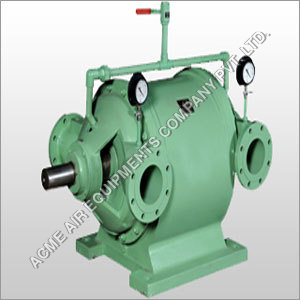

Liquid Ring Vacuum Pump Systems

Liquid Ring Vacuum Pump Systems
Liquid Ring Vacuum Pump Systems
Product Code : 16
Product Description

We have carved a special niche in this domain that helps us to manufacture, supply and export Liquid Ring Vacuum Pump Systems. These are manufactured by our team of highly experienced professionals utilizing superior-grade metallic components. Offered systems are widely used in different industries such as textile industries, sugar plants and chemicals owing to their reliable operations and low operation cost. We offer these Liquid Ring Vacuum Pump Systems in different models with user-friendly controls to ensure their convenient operations.

Acme Air Equipments Company Pvt. Ltd. is an ISO 9001:2008 certified company brings forth an efficient, sturdy and easy to maintain Liquid Ring Vacuum Pump.

AEC AV series liquid ring vacuum compressors and liquid ring vacuum pumps are types of rotary machines wherein a system is designed for the liquid to work as piston. A well-designed cylindrical rotor equipped with hollow hub and a sequence of curved blades projecting radially, rotates without any obstruction in a cylindrical housing which is greater in diameter to that of the rotor. The rotor blades are covered at the sides therefore, making a series of buckets that opens at the bottom into the hollow center.

While in operation, the casing houses adequate amount of liquid, generally water, that is when taken around the outer edge of the casing by the rotor blades, makes a solid ring of liquid within the casing because of the centrifugal force. Since the rotor is small in diameter than the casing and revolves on a center flaky to that of the casing, the buckets of rotor will be partly empty.

The liquid alternatively flowing into and moving out of the rotor buckets at fast speed forms a series of liquid piston that experience upsurge in quick succession in and out of the rotor buckets. Air passes via the the inlet ports of the cone located at the spot where the liquid gushes form the rotor (A) and into the casing. Vent outlets are located in the rotating cycle where the liquid again reverses into the rotor buckets, allowing the compression and discharge of air. This effect is constant and is performed several times in a minute, generating obstruction free air flow without vibration /pulsation.

When the inlet is joined to enclosed system and the outlet to atmosphere the equipment draws air and gases from the system discharge into the surrounding environment and will perform as Vacuum Pump. When the inlet is attached to the atmosphere and the outlet to a close system the equipment draws air from the atmosphere and dispels into the system and will work as compressor.


Applications:
  • Fly Ash Handling
  • Sugar Industry
  • Fertilizer plants
  • Textile Industry
  • Steel Plants
  • Chemical & Pharmaceutical Industry
  • Thermal & Atomic power plants
  • Mineral Washeries
